DEAnbieter: unimat
UN 223-1PL22-0XA0
2 in den letzten 5 Stunden verkauft
Noch 50,00 € bis zum kostenlosen Versand
Voraussichtliche Lieferzeit : 6. Oktober - 8. Oktober.
Garantiert sicher bezahlen
Beschreibung

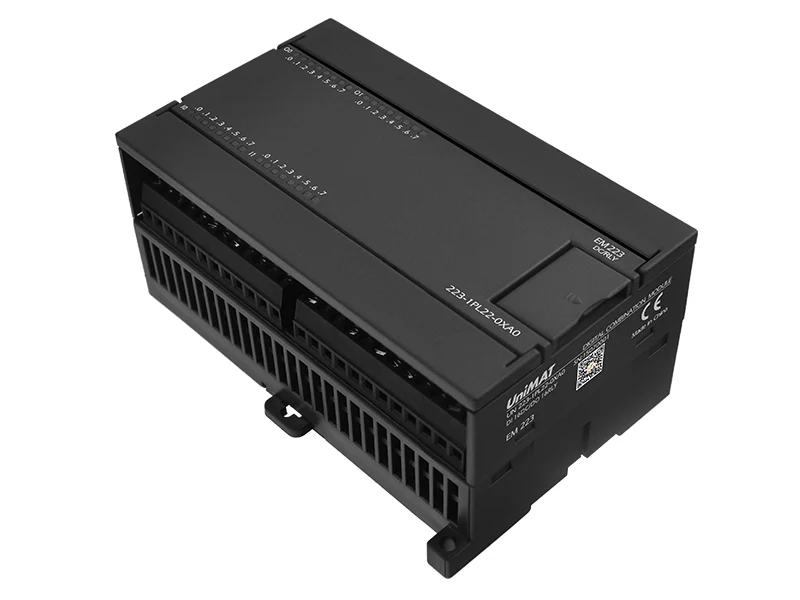

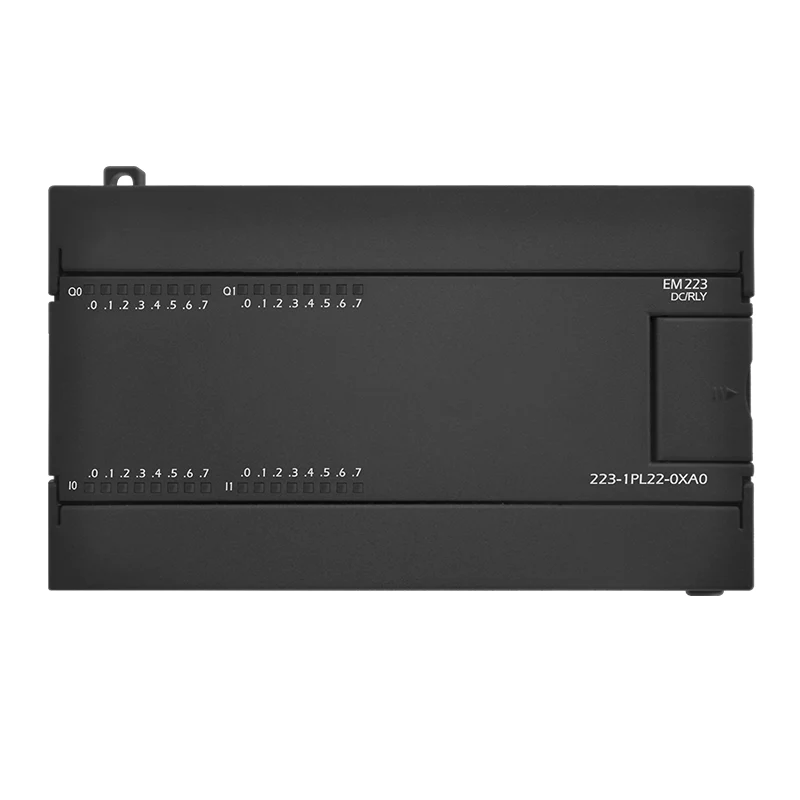

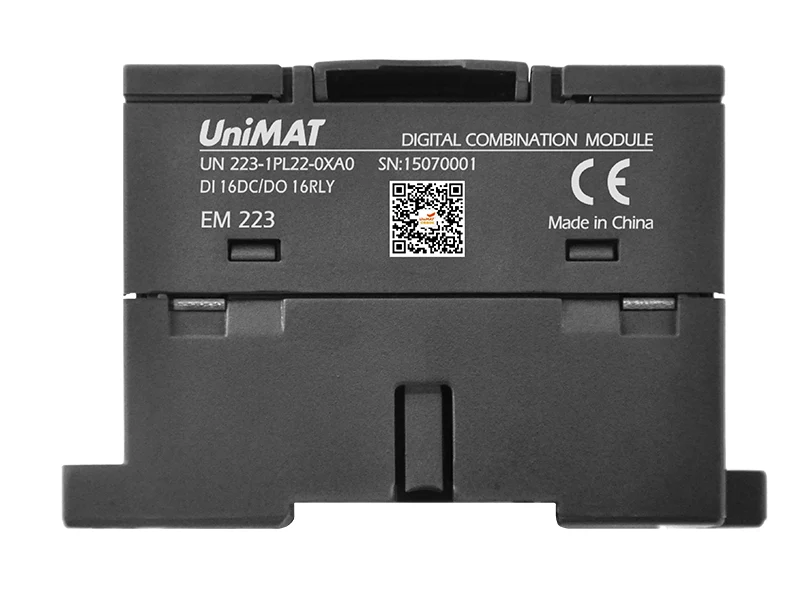

EM 223 16DI / 16DO 200 PLC Programming Logic Controller Module with relay
1). EM223 16DI / 16 DO , 24V DC with relay ;
2). Compatible with Siemens 6ES7223-1PL22-0XA0 ;
3). Digital Input and Output module ;
4). Could connect with Siemens 200 CPU ;
5). 3-year warranty ;
|
Product Description |
16DI,24VDC/16DO, 24 VDC/250VAC, Relay isolation with high immunity. |
|
From bus current consumption |
140mA |
|
Power loss |
5.2W |
|
Digital Input Specification |
|
|
Number of digital inputs |
16 |
|
Input voltage |
24 VDC,4mA |
|
Logic 0 signal |
0~5 VDC |
|
Logic 1 signal |
15~30 VDC |
|
Maximum Input Delay Time |
4.5ms |
|
Signal input type· |
PNP/NPN |
|
Optical isolation(Galvanic) |
500 V AC for 1 minute |
|
Cable Length (Shielded) |
500m |
|
Cable Length (unshielded) |
300m |
|
Digital Output Specification |
|
|
Number of digital outputs |
16 |
|
Output type |
Relay |
|
Isolation |
Relay |
|
Output voltage |
24 VDC |
|
Output voltage range |
5~30 VDC/20~250V AC |
|
Output Current |
2.0A |
|
Lamp load |
30W DC/200W AC |
|
Lifetime contact mechanical |
10,000,000 |
|
Lifetime contact mechanical (rated load voltage) |
100,000 |
|
Cable Length (Shielded) |
500m |
|
Cable Length (unshielded) |
150m |
|
Dimensions(W x H x D)(mm) |
137.5×80×62 |
