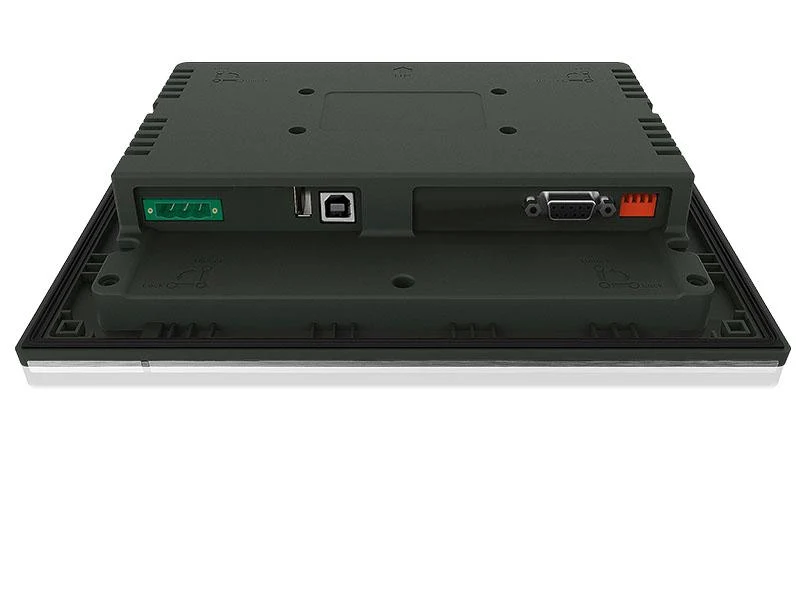

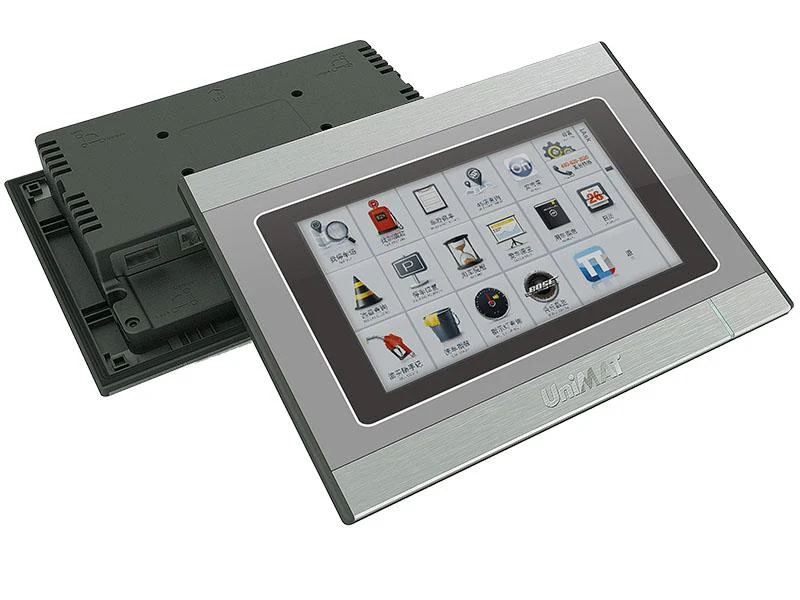

UH 507S HMI

24 bits real-color，Cortex A8 processor,

UH507 is a 7″TFT LCD resistance touch screen HMI, resolution 800x480,

Can expanding multi interface

Type	LCD
Resolution（W×H dots）	800×480
Touch panel	4-wires analog resistance
Memory/Processor	Flash memory	256MB
	DRAM	128MB
	Processor	600MHz 32bit
Interface	USB Host	USB 2.0 Type A
	USB Slave	USB 2.0 Type B
	DB9	RS485，non-isolation，3-B，8-A，5-GND
Switch	Operation mode optional(Running mode, test mode, calibration mode, parameter setting mode)
Power supply	Input voltage	DC24V,Mini. 20.4V, Max. 28.8V
	Current comsuption	300mA
Installation	W×H×D Dimension WxHxD	230×166×39
	Hole size mm	192×138
