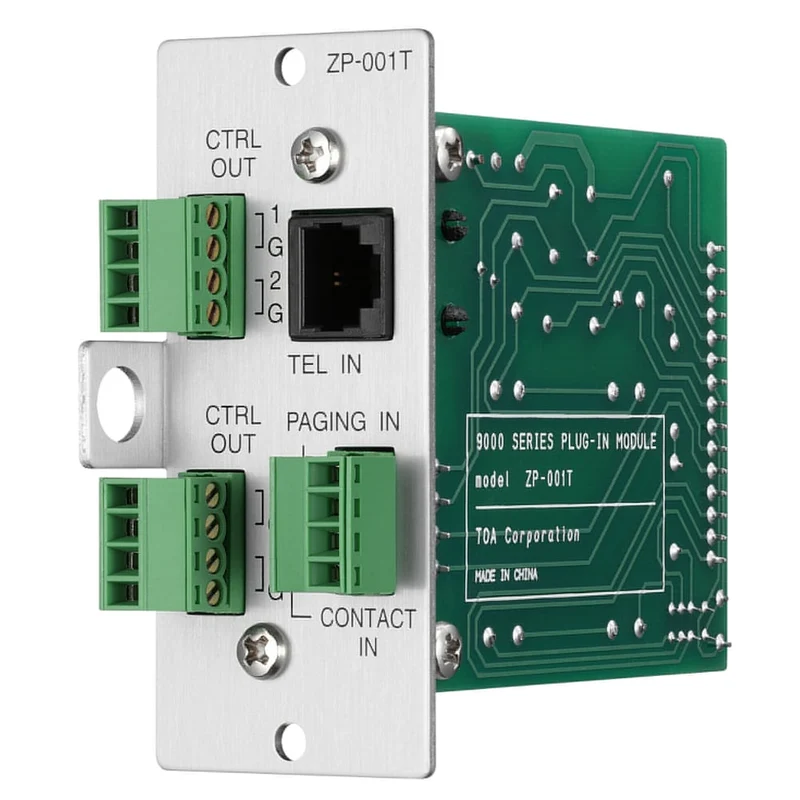

TOA ZP-001T Digital Zone Paging Module For 9000 Series Mixers

The TOA ZP-001T is a plug-in zone paging module engineered specifically for the TOA 9000 Series mixer/amplifier platform. It bridges an analog PABX or compatible page port to the 9000 Series chassis, enabling telephone-initiated broadcast and selective zone paging from within an existing phone system. Two operation modes, ring signal and paging port, provide flexibility for different facility configurations, and broadcast can be initiated in either mode. With DTMF dialing access, an operator can select up to 8 output zones in a single dialing operation, making it well suited for corporate campuses, healthcare facilities, educational institutions, and any installed audio system where paging is centrally managed through a telephone infrastructure.

Connection to the telephone line is handled via a transformer-isolated, balanced RJ-11 interface supporting loop-start or ground-start signaling, selectable to match the host PABX. A removable screw-terminal block provides an alternative paging input and accommodates control input and output wiring without specialized tooling. Four open-collector control outputs allow integration with external zone logic or relay hardware. One ZP-001T module is supported per 9000 Series chassis, keeping the signal path clean and the system topology straightforward for integrators commissioning permanent installations.
