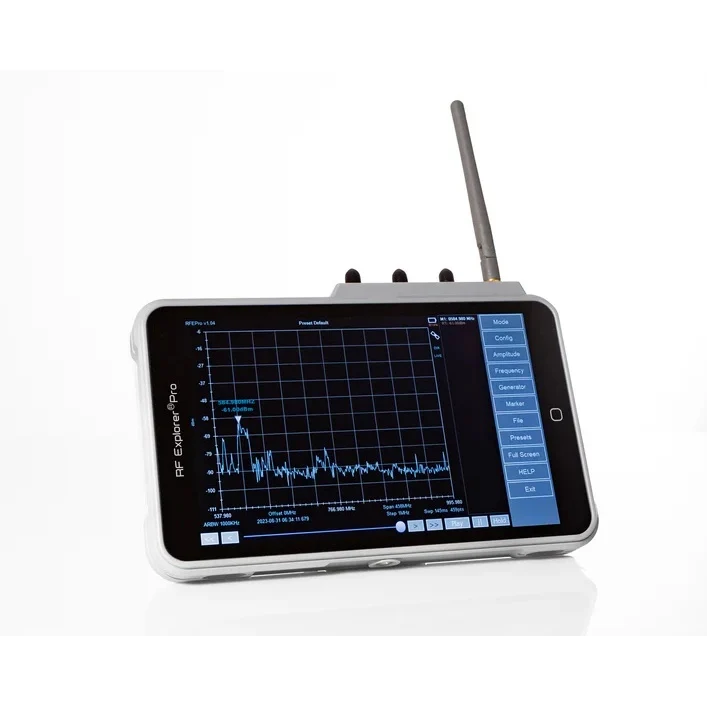

RF Venue RF-EXPLORER-PRO 6 GHz Spectrum Analyzer

The RF Venue RF-EXPLORER-PRO is purpose-built for wireless audio professionals who need to design, deploy, and continuously monitor complex microphone and in-ear monitor systems across challenging RF environments. The integrated 6 GHz spectrum analyzer, tracking generator, and frequency coordination engine deliver fast intermodulation analysis and real-time interference detection without requiring external software. The intuitive touchscreen interface supports advanced visualization modes—Zero Span, Waterfall 2D and 3D, and Power Channel—enabling techs to diagnose RF issues and optimize channel selection on-site.

Professionals use the RF-EXPLORER-PRO to patch directly into antenna distribution systems, receive antennas, and bandpass filters, measuring system performance and debugging coverage gaps before soundcheck. The built-in WiFi Analyzer identifies congested 2.4 and 5 GHz bands used by digital consoles and network devices, helping isolate clean frequencies for wireless audio. Record and replay spectrum data in binary or CSV format, export to Excel or RF Venue's Wireless System Builder, and control the unit remotely over Ethernet via VNC for real-time monitoring from front-of-house or across the venue during a show.
