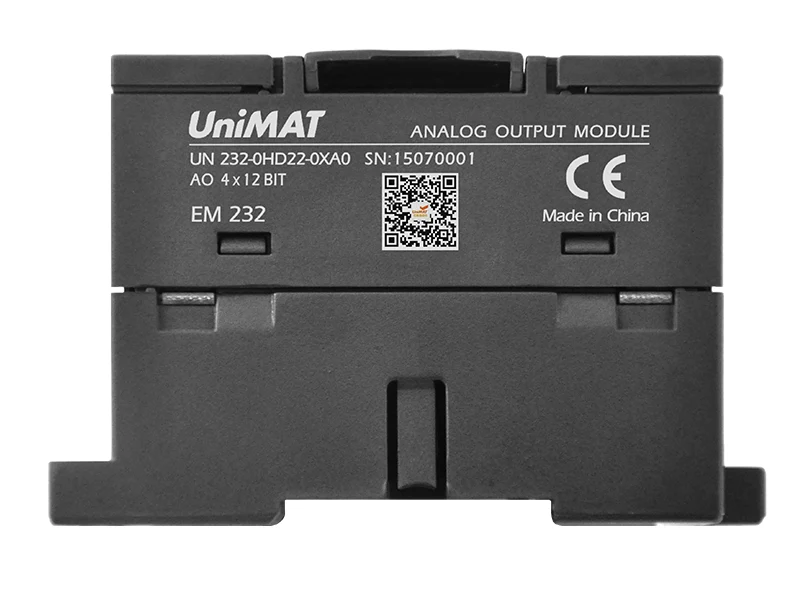

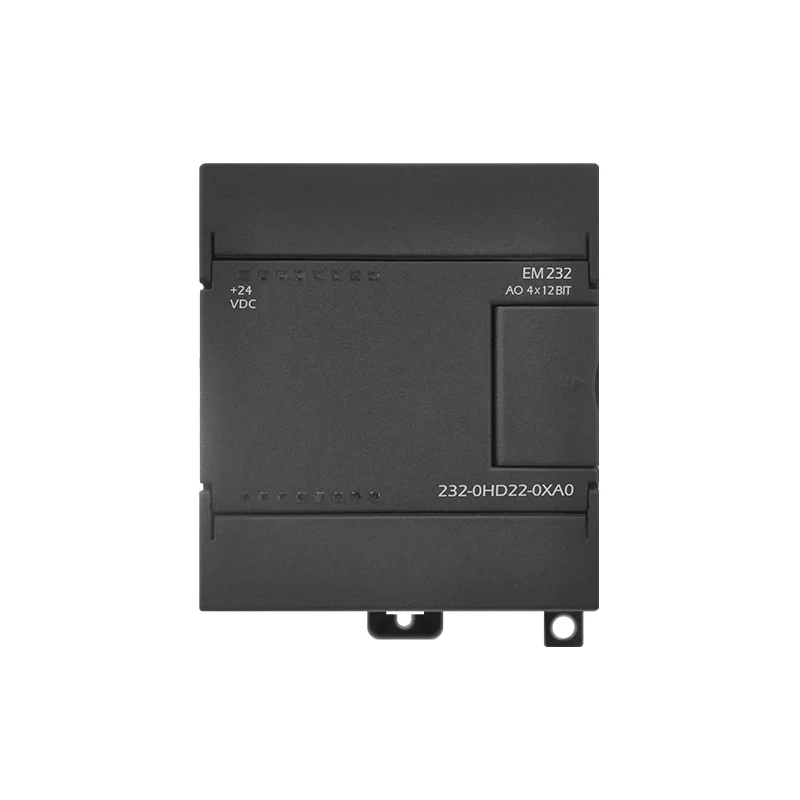

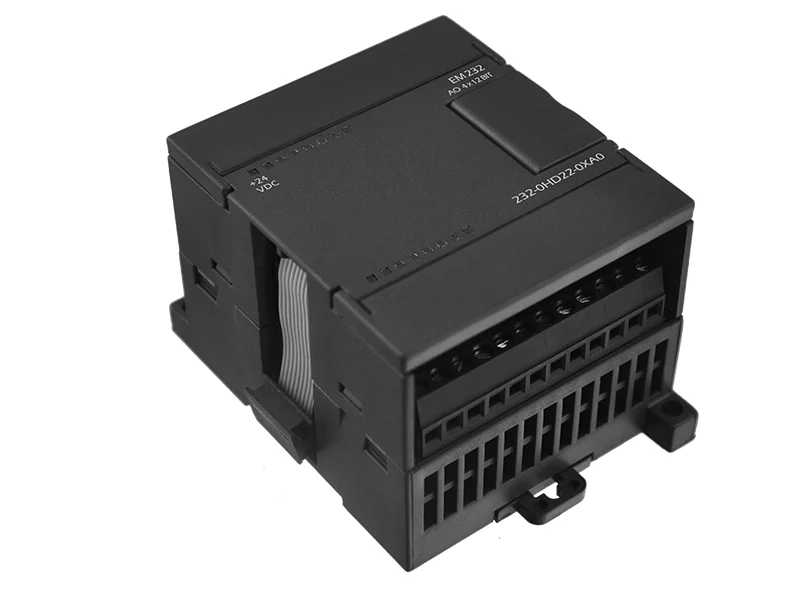

EM232 4AO x12bits

Product Description

4AO;Resolution:16bits; 12 bits resolution voltage output;

11 bits resolution current output

Input Feature

From bus current consumption

22mA

From L+ current consumption

92mA

Power loss

2.5W

Number of analog Input

-

Signal input type

-

Maximum input voltage

-

Maximum input current

-

Voltange input range: Unipolar

-

Voltange input range: Bipolar

-

current input range

-

Resolution

-

Bipolar,full-scale range

-

Unipolar, full-scale range

-

Analog to digital conversion time

-

Output Feature

Number of analog Input

4

Input voltage range

-10~+10V

Input current range

0~20mA

Load inpedance

·for voltage outputs

Min:5KΩ

·for current outputs

Max:0.5KΩ

Resolution

12 bits voltage output;

11 bits current output

Data word format

·Displayable:voltage output

-32，000~+32，000

·Displayable:current output

0~32，000

Basic error

±0.5% of full range

Dimensions(W x H x D)(mm)

71.2×80×62
