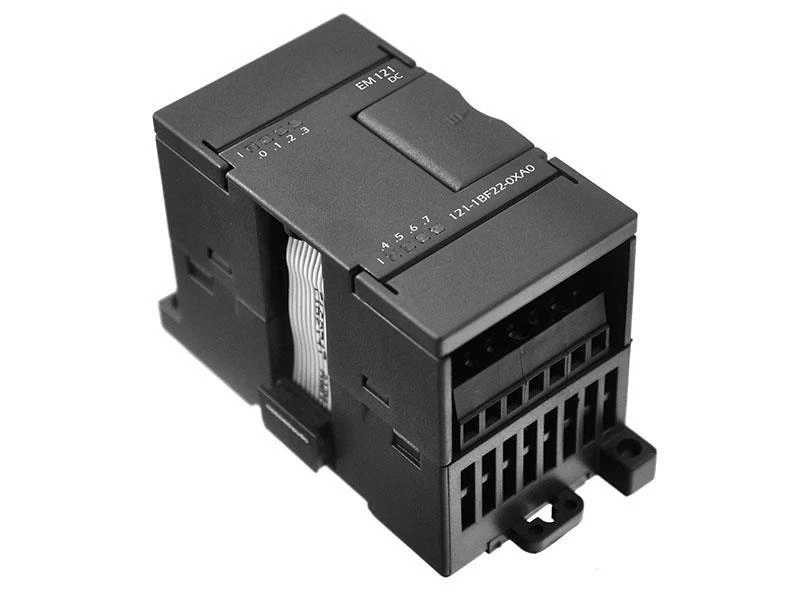

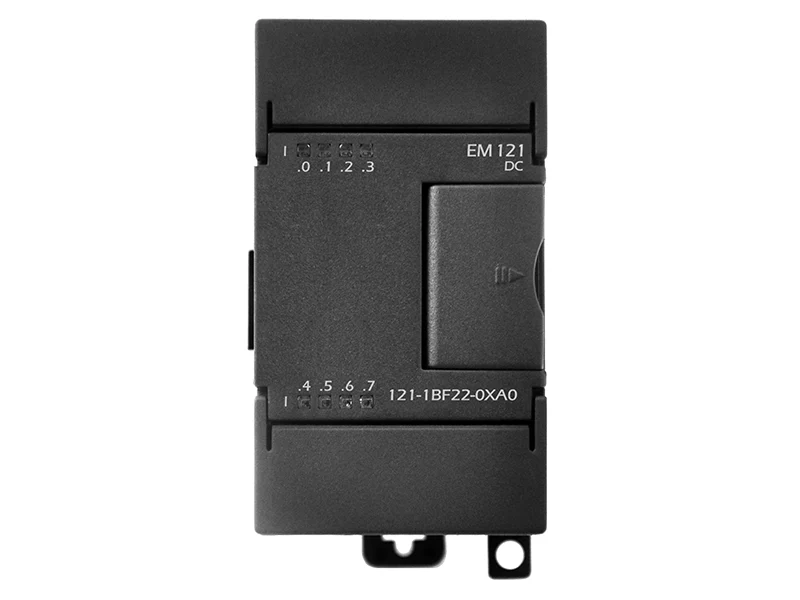

EM121 8DI 24VDC

From bus current consumption

40mA

Power loss

2W

Number of digital inputs

8

Signal input type·

PNP/NPN

Input voltage range

24VDC,4mA

Maximum input voltage

30V DC

Surge voltage

35V DC,0.5s

Logic 0 signal

0~5V DC

Logic 1 signal

15~30V DC

Input delay(max)

4.5ms

Optical isolation(Galvanic) (Field Side to Logic)

500 V AC for 1 minute

Premissible leakage current(Bero)

1mA

Cable Length

500m(Shielded )

300m(Unshielded)

Dimensions(W x H x D)(mm)

46×80×62
