Anbieter: UniMAT

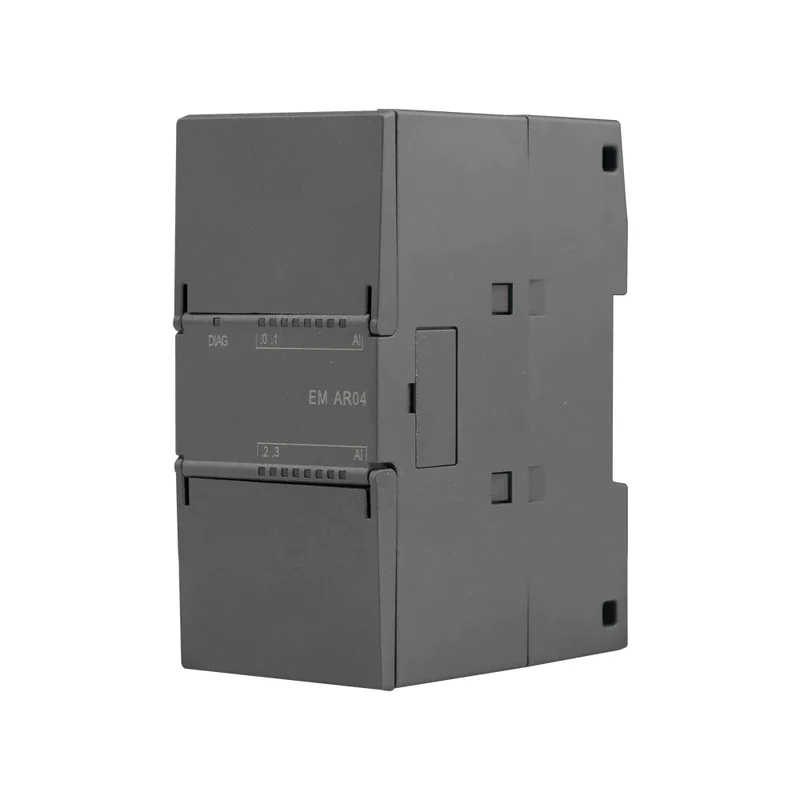

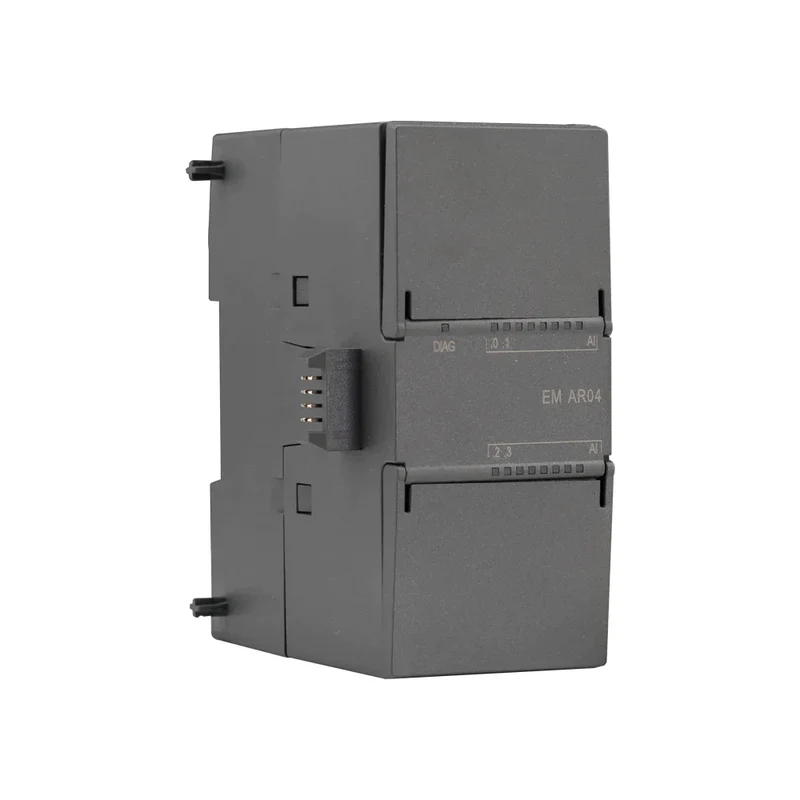

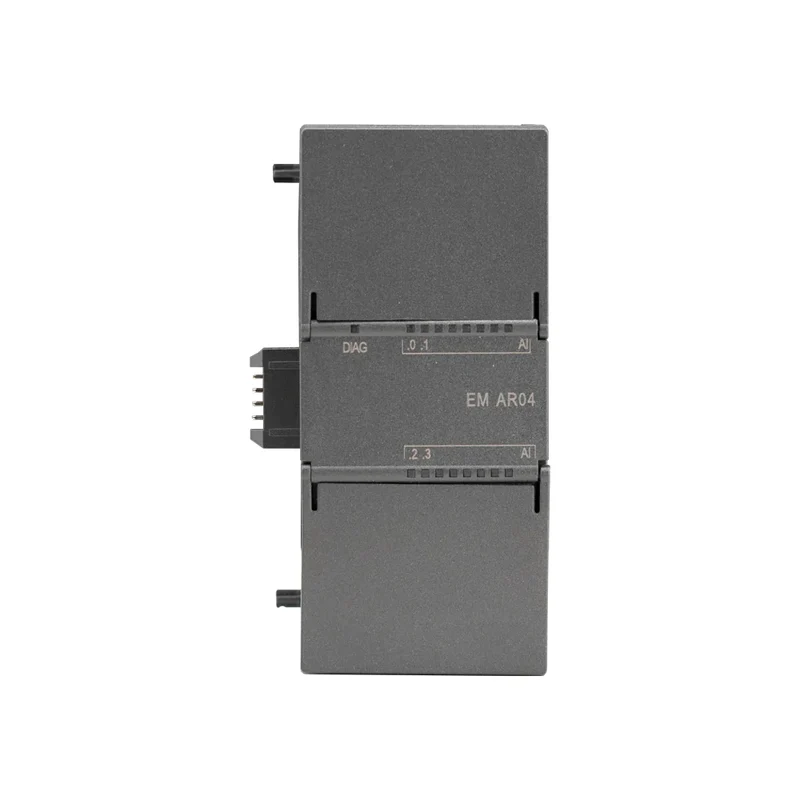

EM AR04

0,00 €

6 in den letzten 5 Stunden verkauft

Menge

Noch 50,00 € bis zum kostenlosen Versand

Voraussichtliche Lieferzeit : 6. Oktober - 8. Oktober.

Garantiert sicher bezahlen

Beschreibung
model EM AR04
order number UN 288-3AR04-0AA0
Conventional
Dimensions W x H x D (mm) 45 x 100 x 81
weight 150g
power consumption 1.5W
Current 80 mA
Consumption (SM Bus)
Current 40 mA
consumption (24 V DC)
analog input
Input channels 4
type RTD and resistor values for module reference ground
Resolution Temperature Resistance 0.1 ˚ C / 0.1 ˚ F
15 bits + sign bit
maximum withstand voltage ±35V
noise suppression 85dB, 10Hz/50Hz/60Hz/400Hz
common mode rejection > 120dB
impedance ≥ 10 MΩ
isolation 500V AC
Channel-to-channel isolation -
precision Please refer to the RTD sensor selection table
repeatability ±0.05% FS
Maximum Sensor Power Consumption 0.5mW
Measuring principle integral
Module update time Please refer to the noise reduction selection table
Cable length (maximum) Maximum length to sensor 100 m
Cable resistance 20 Ω max, 2.7 Ω max for Cu10
overflow/underflow √
Open circuit (current mode only) √
24 V DC low voltage √

Dimensions (mm)

Structure Diagram
