Anbieter: UniMAT

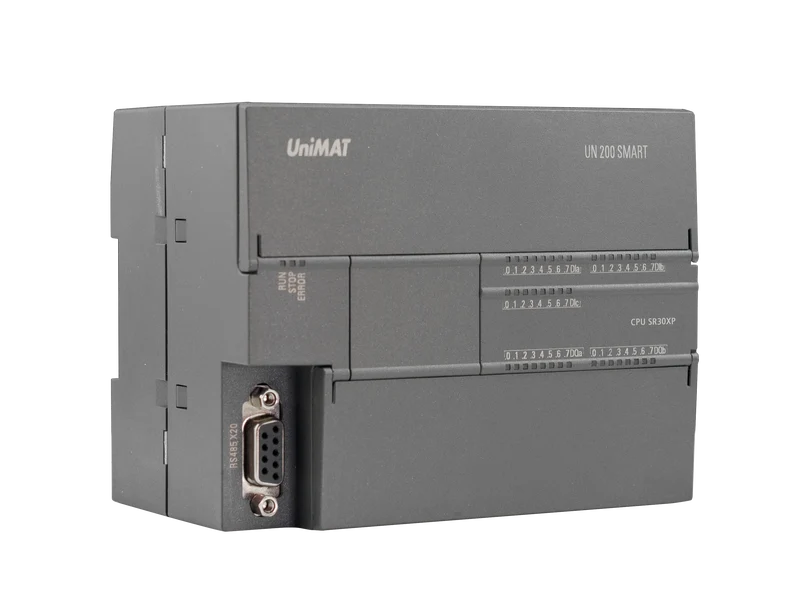

CPU SR30XPE

0,00 €

2 in den letzten 5 Stunden verkauft

Menge

Noch 50,00 € bis zum kostenlosen Versand

Voraussichtliche Lieferzeit : 6. Oktober - 8. Oktober.

Garantiert sicher bezahlen

Beschreibung
Part No. UN 288-1SR30E-XPA1
Dimension(w*H*D)mm 125*100*81
Current suppIy Max.300mA
DI current consumer(24VDC) 4mA input of each using point
CPU Characters
User Memory 24KB programming memory 20KB data memory,Max. 10KB retentive memory
LocaI digitaI I/O 18DI/12DO
ModuIe expansion Max. 6
Communication Board Max.1
High speed pulse SingIe phase : 4*60KHz
Orthogonal phase: 1*30KHz
Ports Ethernet: 1 port for PG communication, 11 ports shared by OUC, PUT/GET, and HMI.

Serial Ports: 2 (RS485), Port 2 does not support PPI.

Expansion Port: 1 optional RS485 SB card (Port 1).
Programming device Com port: 1 connection, Ethernet port : 1 connection
CPU(PUT/GET) Ethernet：（Total 8） can automatically configurable for 7
Power
Power input VoItage range 85~264VAC
Power output VoItage range 20.4~28.8VDC
Rated output current (Max.) 300mA
DigitaI input
Input points 18
Type NPN/PNP
Rated voItage 3.9mA rated 24VDC (5V a re not a v ai lable )
AIIowed continue voItage Max.30VDC
Logic 1 signaI (Min.) 15VDC at 2.4mA
Logic 0 signaI (Max.) 5VDC at 1mA
FiItering time 0，6.4，12.8ms
DigitaI output
output points 12
Type ReIay dry contact
VoItage range 5~30VDC or 5~250VAC
Rated current(Max.) per point 2.0A
Analog input and out put 4 phase input/2 phase output
local analog input/output address AIW0-AIW6 AQW0-AQW2

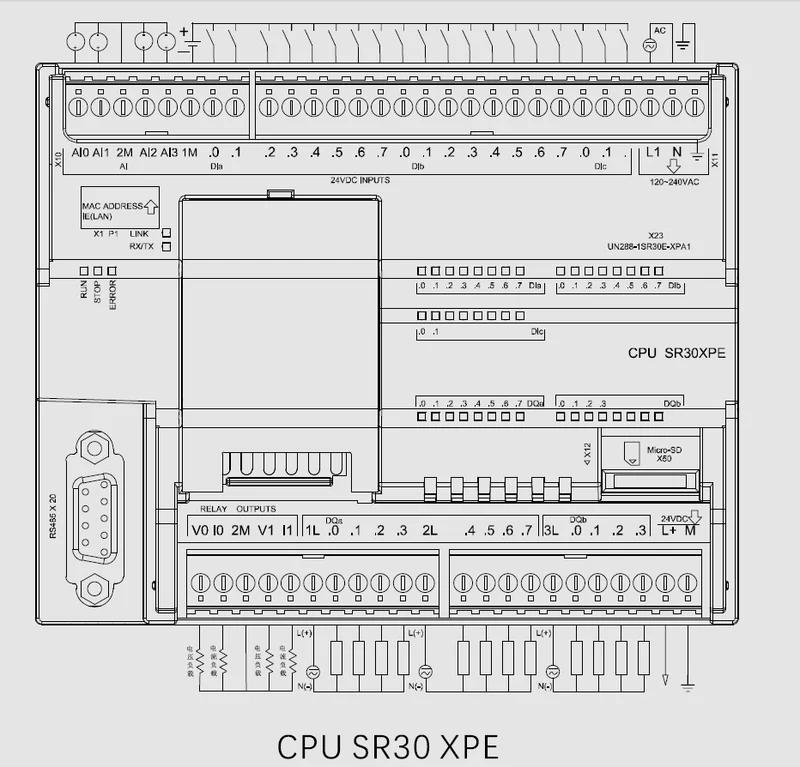

CPU SR30XPE Wiring Diagram

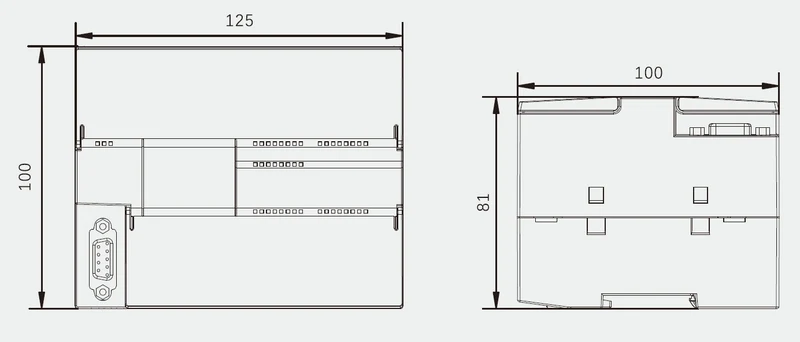

CPU SR30XPE Dimensional Drawing
