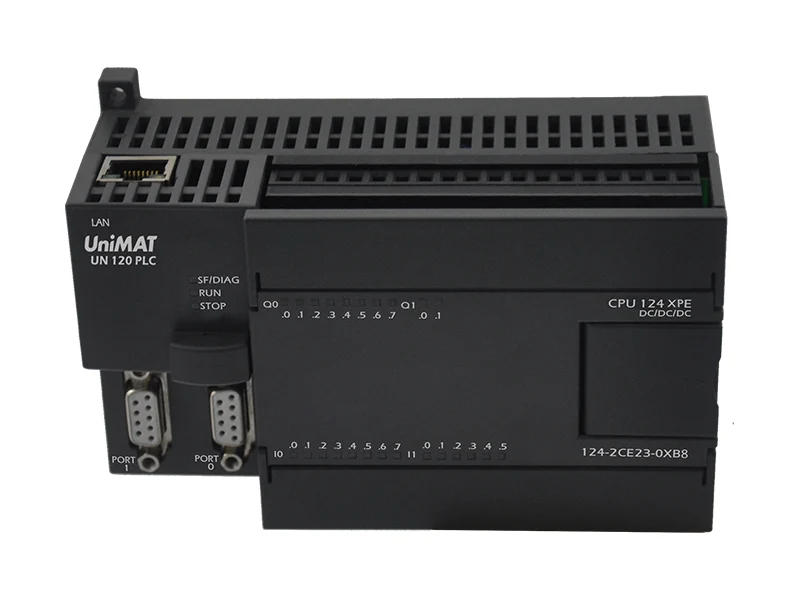

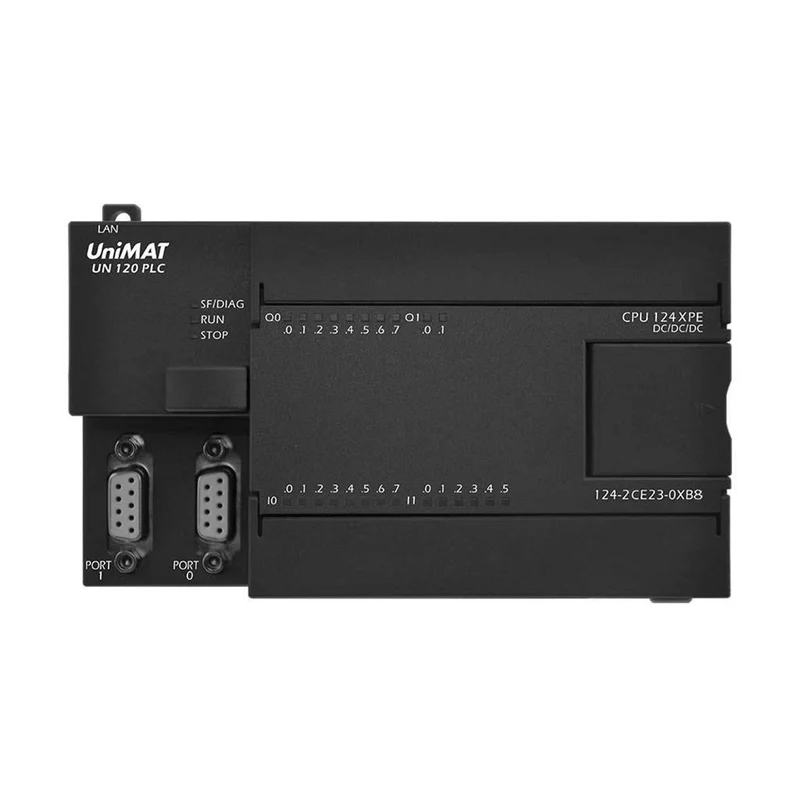

CPU 124XPE-2Q/CPU 124XPE-2R

· CPU124XPE This machine integrates 10 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog outputs.

· Integrated 3 communication ports, 1 RJ45 Ethernet communication port, 2 RS485 communication ports.

· The program space is 16K, the data space is 10K, and a maximum of 7 I/O modules can be expanded.

Support 2 single-phase 20KHz, 1 AB phase 10KHz counting, support 2 20KHz high-speed pulse output.

· Support industry-leading permanent data power-off retention function, no need for additional battery support, data storage for up to 10 years.

  Order number: UN124-2CE23-0XB8 Transistor
