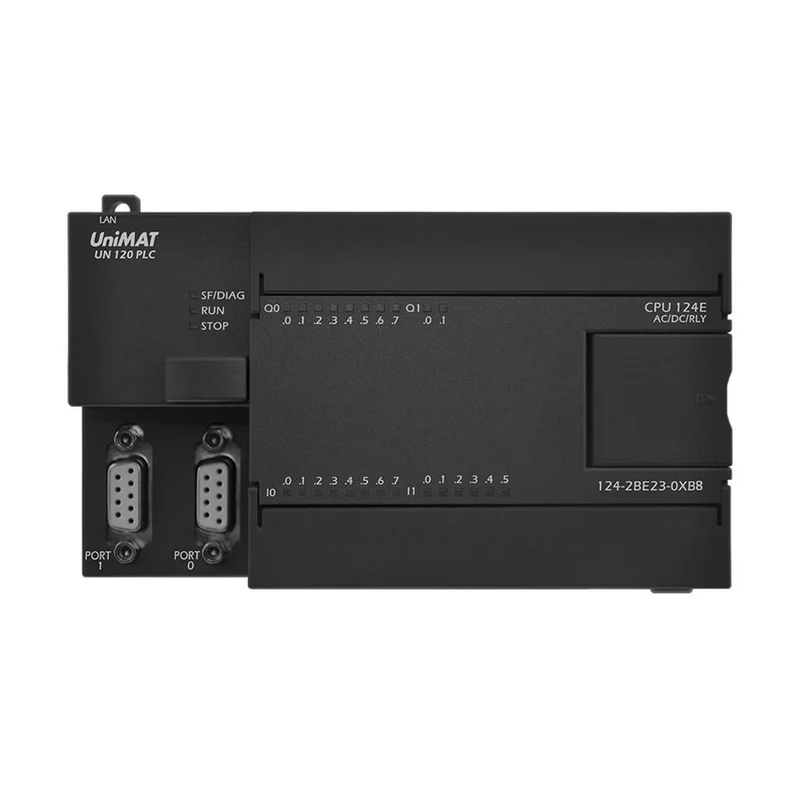

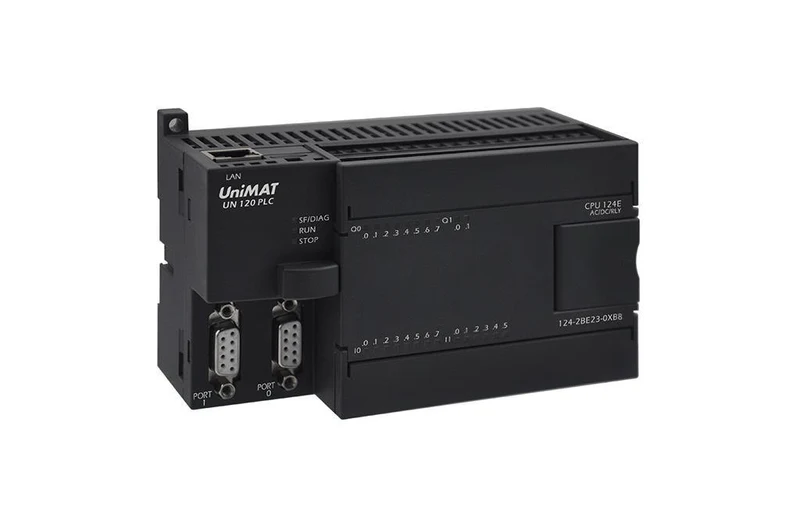

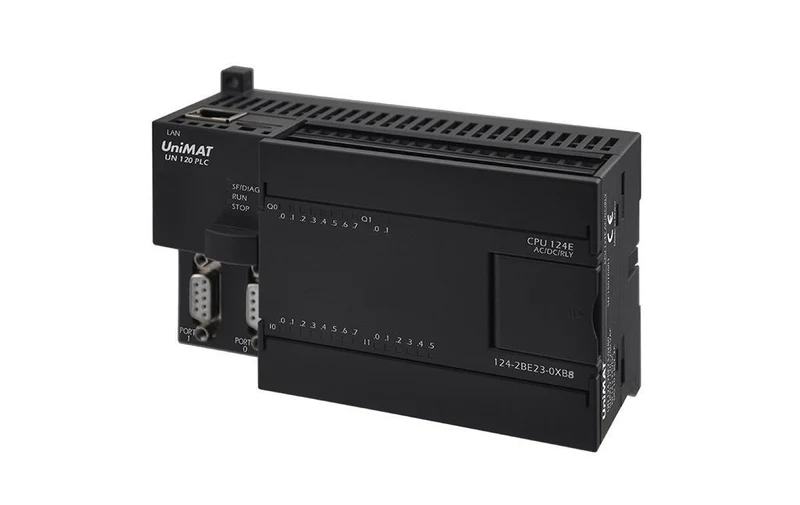

CPU 124-2QE/CPU 124-2RE

• Ethernet functional CPU;

• 14 points of digital input, 10 points of digital output, 7 modules can be expanded;

• 220VAC power input, relay output;

• Using FLASH technology to keep power off for a long time, without battery support, data can be stored for up to 10 years;

• Unique AES iterative encryption algorithm to protect users' intellectual property rights;

• With two communication interfaces, both support PPI communication protocol;

• Pluggable terminal design.

Features:

Support STEP7  MicroWIN V4.0 SP6 and above software user program upload/download/online monitoring and debugging.

Supports U H500 series touch screen connected to UniMAT .

Support MODBUS-TCP master / slave communication mode. A single CPU can communicate with 4 slave CPUs and 4 master CPUs simultaneously.

Through MODBUS-TCP , the host computer software such as configuration software and OPC server can be connected.
