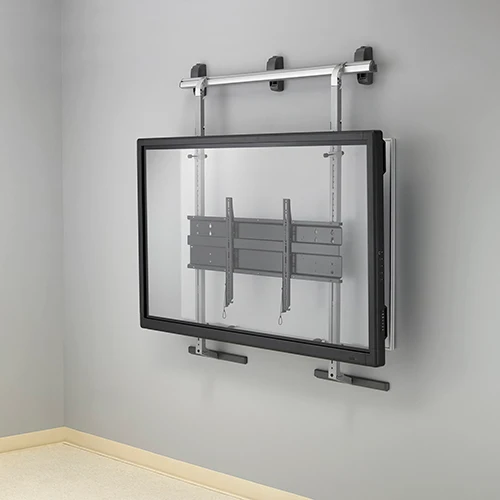

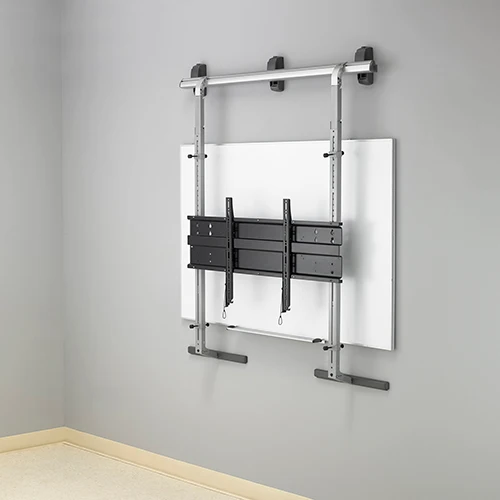

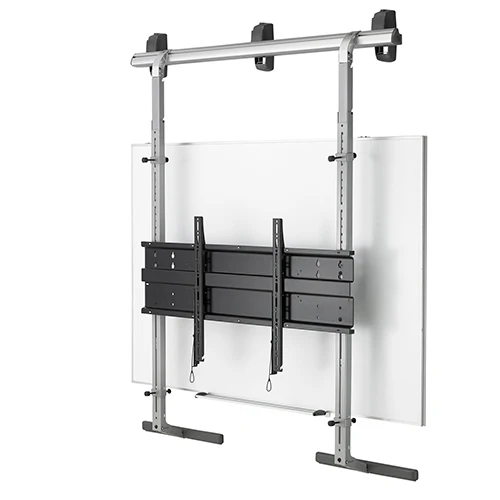

Chief Over-the-Whiteboard Interactive Display Mount (OB1U)

Heavy-Duty Mounting Over Existing Chalkboards / Whiteboards

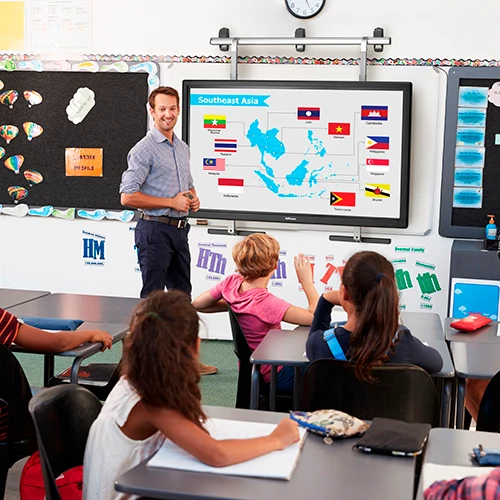

The Chief OB1U makes it simple to install large interactive flat panel displays over existing whiteboards or chalkboards — without demolition or surface removal. Arriving largely pre-assembled, it minimizes install time and allows adjustable placement for accessibility — ideal for classrooms, front-of-room corporate training, and ADA-conscious environments.

Supports large displays 50–80" with up to 310 lb (140.6 kg) capacity.

This rail-based system anchors into multiple wall types and offers telescoping legs for flexibility around existing obstructions, conduit runs, or cabinetry.

Key Features

• Supports 50–80" displays
• Heavy-duty capacity: 310 lb / 140.6 kg
• VESA up to 1020 × 500 mm (extendable to 1020 × 600 mm using optional FHB7036 or FHB7037)

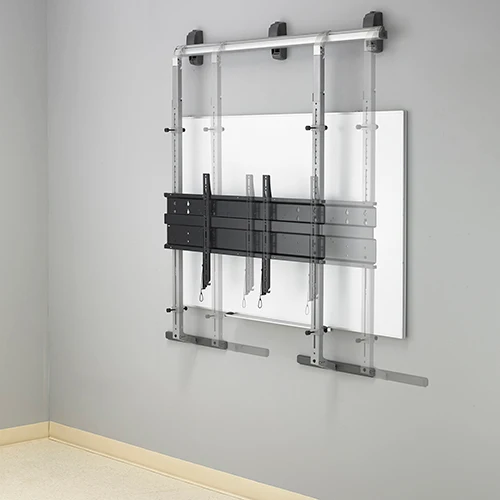

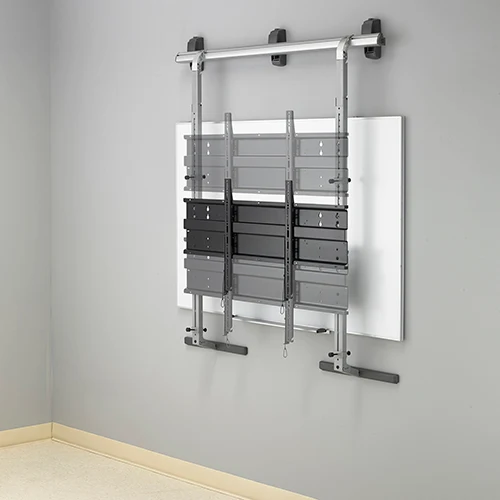

• 26" (660 mm) of display height adjustability
• Rail-style interface — hang the display after mounting brackets, no box-removal required
• Installs into wood, concrete, steel, or cinder-block
• Hardware included for 16" and 24" on-center studs (minimum 2 stud engagement)
• Lateral shift for easy left/right alignment
• Maintains minimum 4" (102 mm) wall clearance
• Plumb adjustment up to 1.5° for uneven walls
• Telescoping legs accommodate classroom objects and infrastructure

The fastest way to mount a heavy IFP over an existing board — without tearing the room apart.
