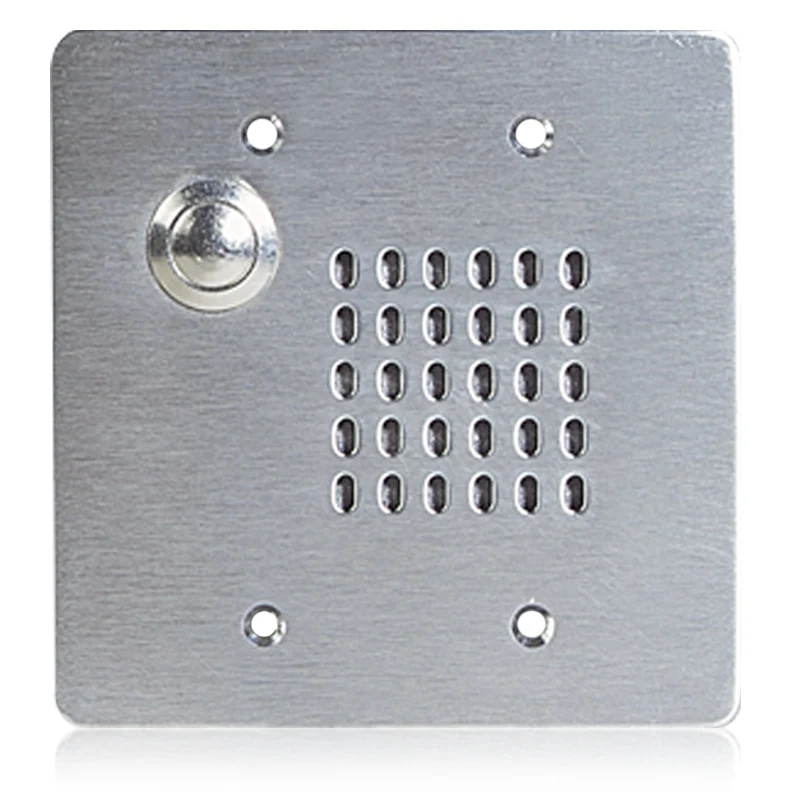

AtlasIED VPCS-2GPB-2 Wired Intercom Station With Speaker and Call Switch

The AtlasIED VPCS Series wired intercom station is designed for systems integrators and security installers requiring reliable voice communication and call origination in high-traffic or vandalism-prone environments. The shallow back-box depth allows installation in standard 2- and 3-gang electrical boxes without wall modification, making it a practical choice for retrofit and new construction commercial projects alike.

The PB configuration adds a heavy-duty, momentary push-button call switch rated for continuous use, housed on an 11-gauge stainless steel face plate and sealed to IP65 for moisture resistance. The push-button assembly uses nickel-plated brass construction, making it appropriate for lobbies, warehouses, correctional facilities, and entry control points where durability is non-negotiable.

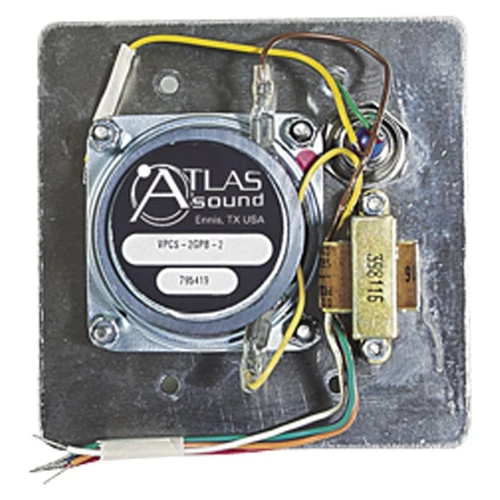

The 25V transformer with selectable watt taps integrates directly into 70V/25V distributed audio infrastructures, giving engineers flexibility to balance drive levels across multi-station intercom runs. The two-piece die-cast baffle system shields the loudspeaker cone from physical damage, while the moisture-resistant phenolic resin cone maintains voice intelligibility over the critical speech frequency range without requiring external enclosure treatment.
