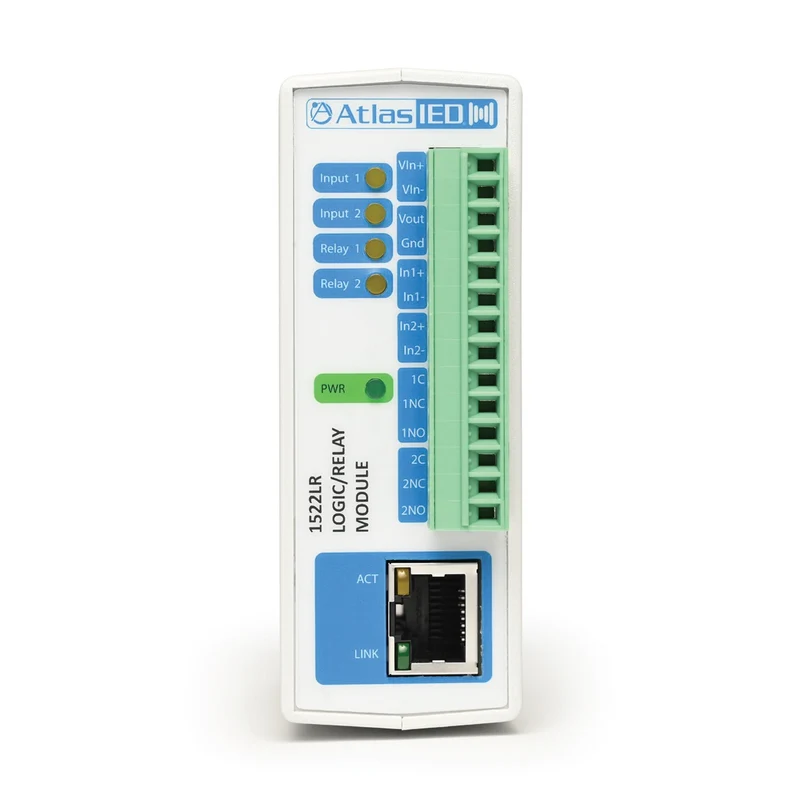

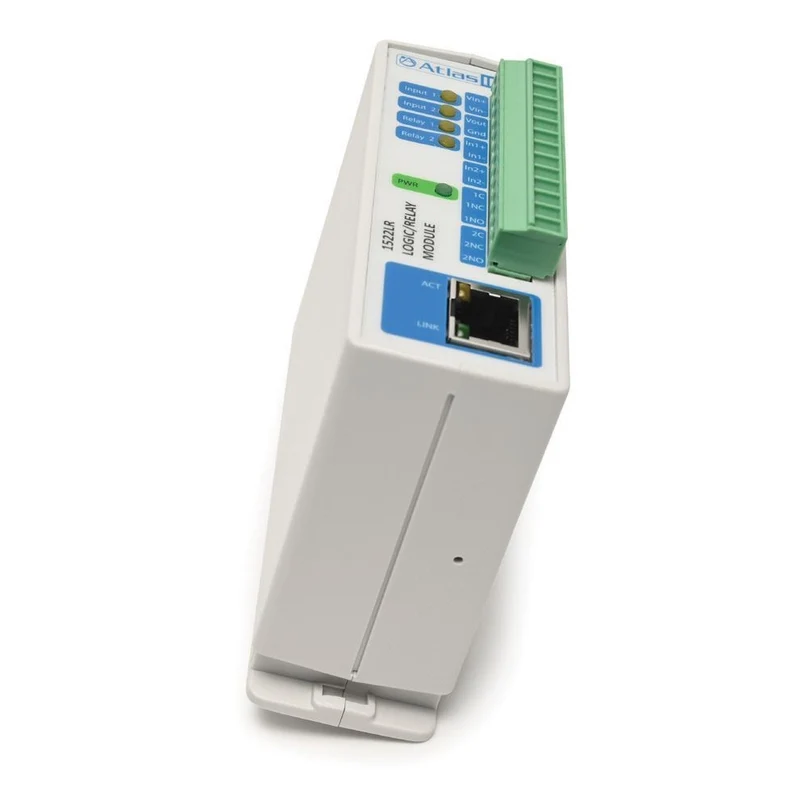

AtlasIED IED1522LR Logic Relay IO Module for GLOBALCOM Systems

The AtlasIED IED1522LR is engineered for system integrators deploying GLOBALCOM-based paging, intercom, and mass notification infrastructures where reliable remote control and logic monitoring are required. It provides two electro-mechanical relays and two optically-isolated inputs, enabling bidirectional control and supervision across distributed facility systems — from corporate campuses to healthcare and educational facilities.

Relay outputs are configured through the GLOBALCOM GCK Application and 5400 Designer software, allowing actions to be triggered on schedule, by event, or via network command. The optically-isolated inputs serve as both trigger sources and logic monitor points capable of registering system faults, making the module a practical tool for supervisory control architectures that demand accountability. All configuration settings are retained in non-volatile memory, ensuring reliability across power cycles.

Powered entirely via IEEE 802.3af PoE, the IED1522LR eliminates the need for local power infrastructure, simplifying deployment in remote locations or above-ceiling enclosures. Its rugged DIN-rail mount enclosure suits rack rooms, equipment closets, and structured wiring panels. Integrated voltage and temperature monitoring provide continuous system health visibility without additional hardware.
