7-inch Q-Series panel PC with Windows 11 Pro, Intel Celeron J4125, 8GB RAM, 128GB SSD

7-inch Q-Series panel PC with Windows 11 Pro

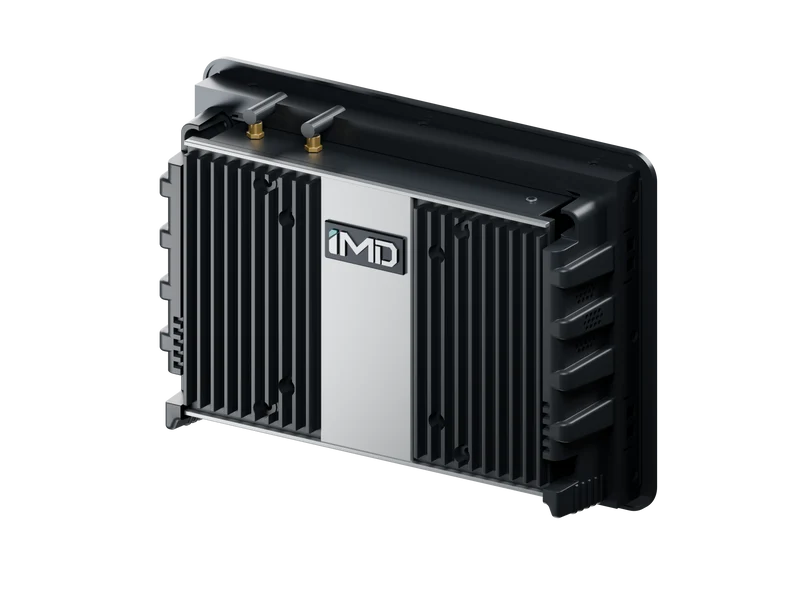

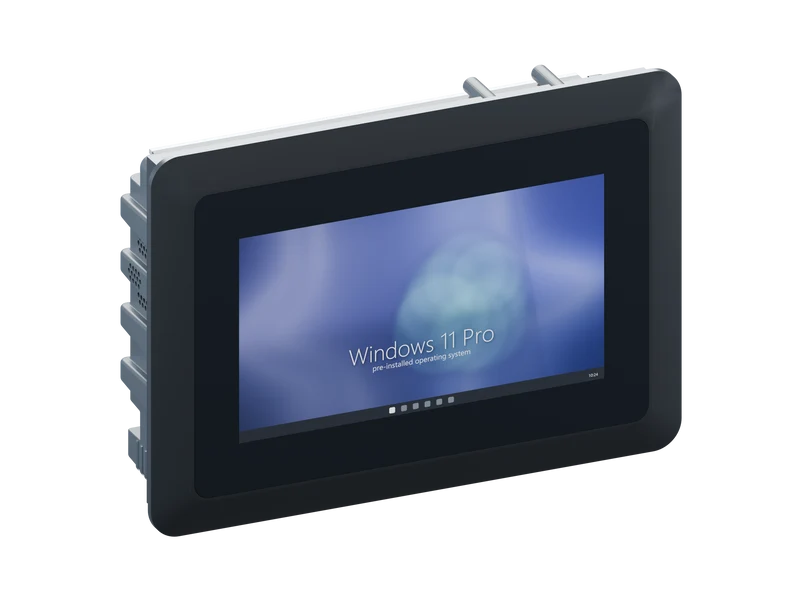

A 7 inch industrial panel PC built around the Intel Celeron J4125, with a 1024 x 600 capacitive display, two LAN ports and a sealed fanless aluminum body for compact machine-side visualization terminals and retrofit HMI stations. Windows 11 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.

Display 7-inch TFT LCD Resolution 1024 x 600 Processor Intel Celeron J4125 Memory 8GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Contrast ratio 500:1 Operating system Windows 11 Pro; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 when correctly installed Operating temperature -10°C to 60°C Enclosure 225.04 x 160.7 x 59 mm Datasheet opening 212.84 x 148.5 mm Ethernet 2 x LAN, 1000Mbps (Realtek RTL8111H + RT8152B) USB 2 x USB 2.0 + 2 x USB 3.0 Audio 1 x audio output Video output HDMI (up to 4K) + VGA Wireless 2.4GHz/5GHz dual-band WiFi, 2 x antenna; Bluetooth 4.0 optional; SIM slot depends on 3G/4G module
