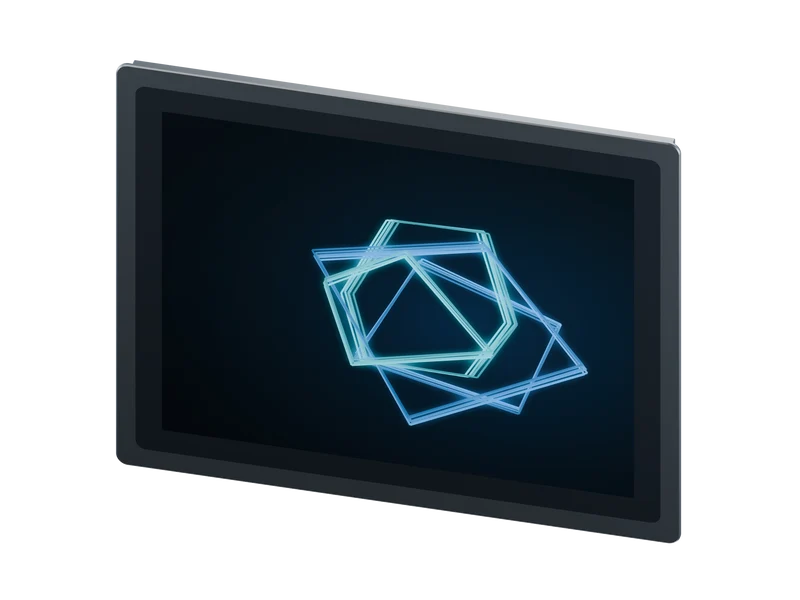

32GB 19-inch 2nd Gen Panel PC - i3-6100U, 128GB SSD, Windows 10 LTSC

19" 2nd Gen Panel PC - i3-6100U, 32GB / 128GB SSD / Windows 10 LTSC

This 32GB configuration combines Intel Core i3-6100U with 128GB SSD in the 19-inch 2nd Gen enclosure. 1280 x 1024 display; supplied with Windows 10 LTSC.

Match a 32GB project specification

Choose this build when the project calls for 32GB RAM on this processor platform. Memory capacity is separate from CPU performance; validate the complete workload before rollout.

Budget the 128GB system drive

Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.

Integrate the i3-6100U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 19-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

19-inch 2nd Gen panel PC with Windows 10 LTSC

A 19-inch 1280 x 1024 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 IoT Enterprise LTSC is pre-installed for long-servicing deployments; the release is confirmed with your quote.

Display 19-inch TFT LCD Resolution 1280 x 1024 Processor Intel Core i3-6100U Memory 32GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Windows 10 LTSC; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 451 x 380 x 63 mm Datasheet opening 434.6 x 363.6 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, both on bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA (nominal center 0.07 mm above enclosure center)
