19-inch Q-Series Panel PC with 512GB SSD - i3-10110U, 8GB RAM, Windows 10 LTSC

19" Q-Series Panel PC - i3-10110U, 8GB / 512GB SSD / Windows 10 LTSC

Select the 512GB SSD build with Intel Core i3-10110U and 8GB RAM for this 19-inch Q-Series panel computer. 1280 x 1024 display; supplied with Windows 10 LTSC.

Account for the complete 8GB workload

Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.

Plan local records on the 512GB SSD

This 512GB SSD provides more nominal capacity than the 128GB and 256GB options where those builds are available. Size project files, caches and log retention from actual application usage.

Integrate the i3-10110U platform

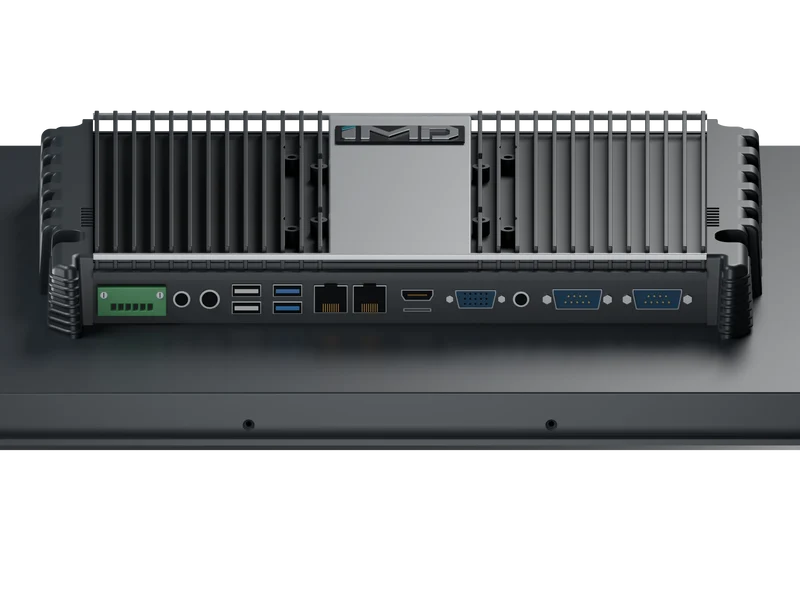

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 19-inch Q-Series family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

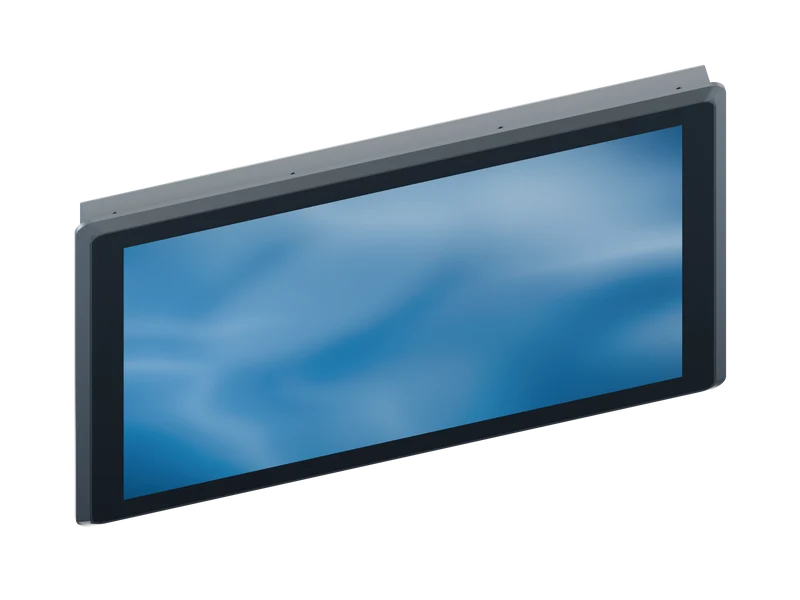

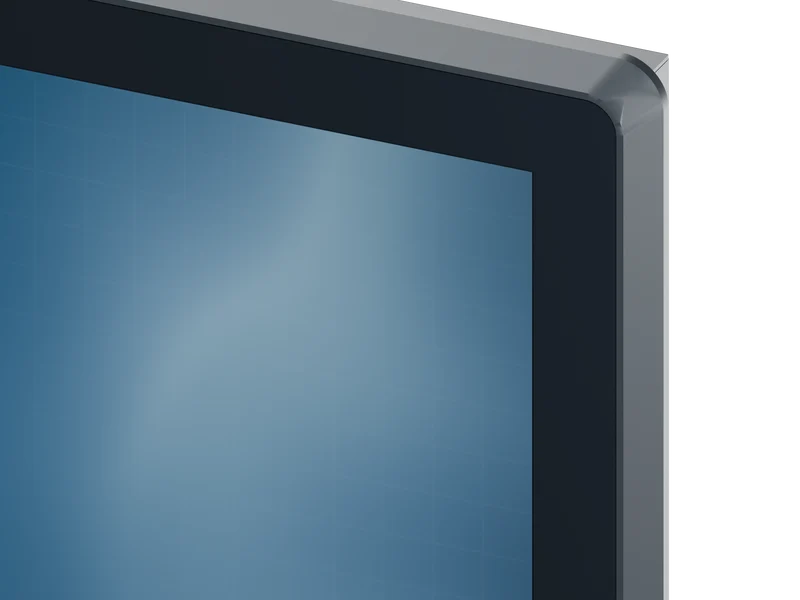

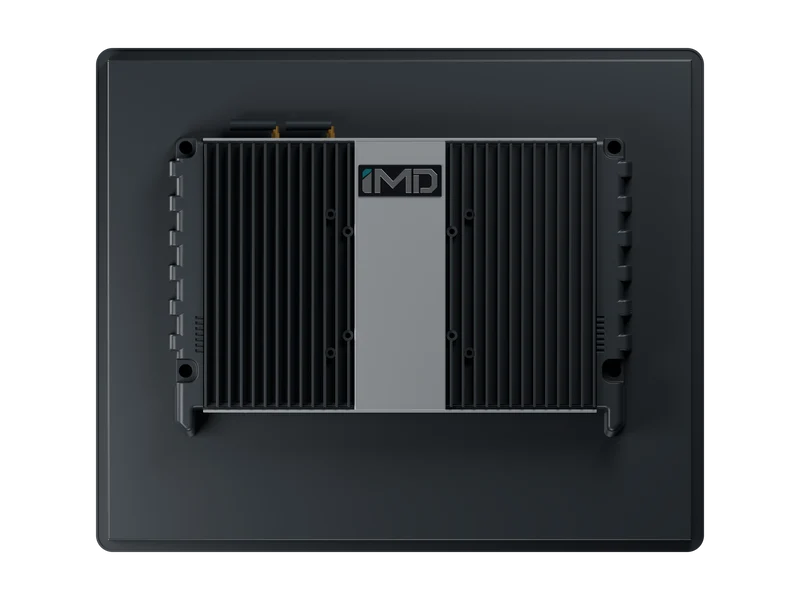

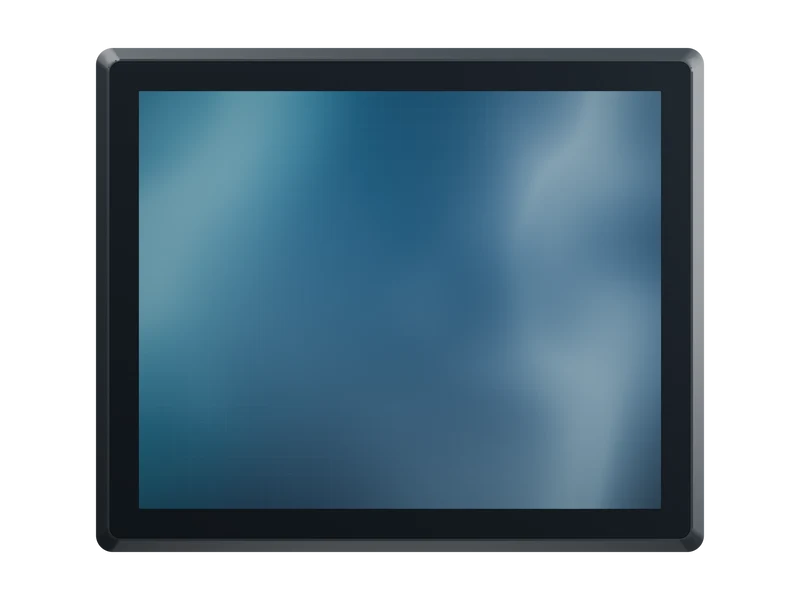

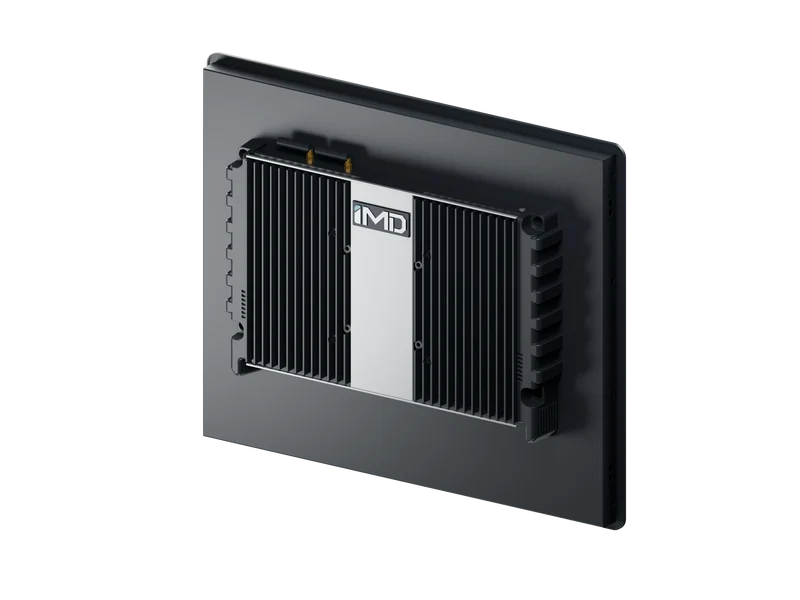

19-inch Q-Series panel PC with Windows 10 LTSC

A 19-inch 1280 x 1024 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 IoT Enterprise LTSC is pre-installed for long-servicing deployments; the release is confirmed with your quote.

Display 19-inch TFT LCD Resolution 1280 x 1024 Processor Intel Core i3-10110U Memory 8GB DDR4 Storage 512GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Windows 10 LTSC; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 438.6 x 363.6 x 66 mm Datasheet opening 423.4 x 348.4 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, both on bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA (center 11.9 mm above enclosure center)
