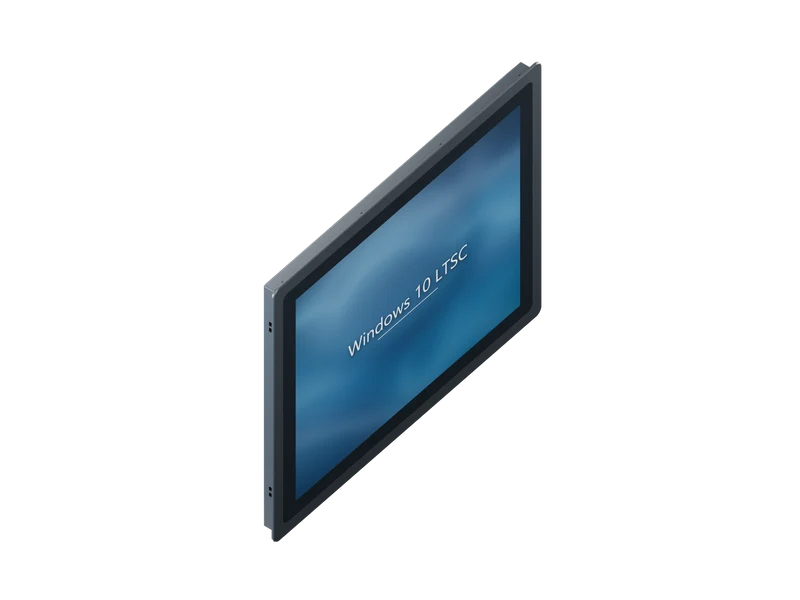

19-inch 2nd Gen i3-10110U Panel PC - 8GB RAM, 128GB SSD, Windows 10 LTSC

19" 2nd Gen Panel PC - i3-10110U, 8GB / 128GB SSD / Windows 10 LTSC

Intel Core i3-10110U, 8GB RAM and 128GB SSD define this 19-inch 2nd Gen build. 1280 x 1024 display; supplied with Windows 10 LTSC.

Account for the complete 8GB workload

Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.

Budget the 128GB system drive

Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.

Integrate the i3-10110U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 19-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

19-inch 2nd Gen panel PC with Windows 10 LTSC

A 19-inch 1280 x 1024 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 IoT Enterprise LTSC is pre-installed for long-servicing deployments; the release is confirmed with your quote.

Display 19-inch TFT LCD Resolution 1280 x 1024 Processor Intel Core i3-10110U Memory 8GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Windows 10 LTSC; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 451 x 380 x 63 mm Datasheet opening 434.6 x 363.6 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, both on bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA (nominal center 0.07 mm above enclosure center)
