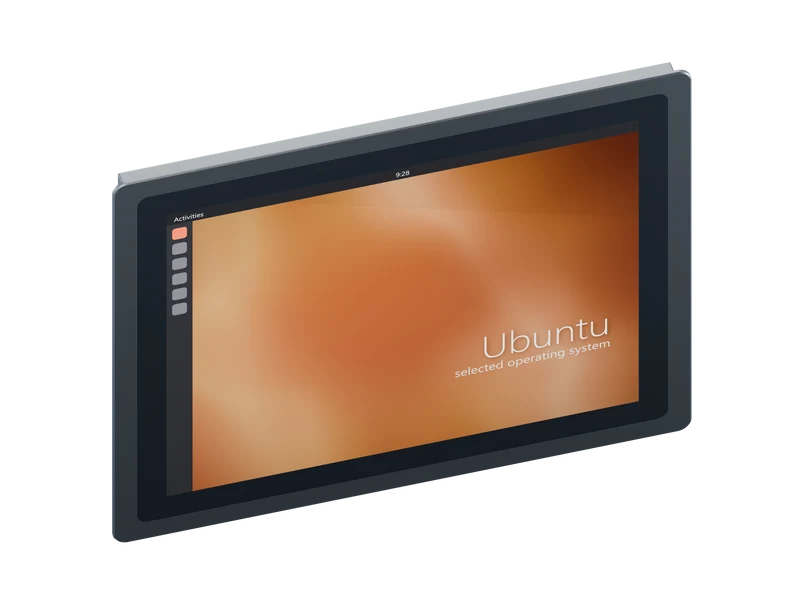

17-inch 2nd Gen Panel PC with 512GB SSD - i5-8265U, 4GB RAM, Ubuntu

17" 2nd Gen Panel PC - i5-8265U, 4GB / 512GB SSD / Ubuntu

Select the 512GB SSD build with Intel Core i5-8265U and 4GB RAM for this 17-inch 2nd Gen panel computer. 1280 x 1024 display; supplied with Ubuntu.

Plan a defined software image

With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.

Plan local records on the 512GB SSD

This 512GB SSD provides more nominal capacity than the 128GB and 256GB options where those builds are available. Size project files, caches and log retention from actual application usage.

Integrate the i5-8265U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 17-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

17-inch 2nd Gen panel PC with Ubuntu

A 17-inch 1280 x 1024 panel computer for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Ubuntu is selected; the installation release is confirmed with your quote.

Display 17-inch TFT LCD Resolution 1280 x 1024 Processor Intel Core i5-8265U Memory 4GB DDR4 Storage 512GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Ubuntu; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 414 x 345 x 63 mm Datasheet opening 397.6 x 328.6 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; centered 75/100 mm VESA
