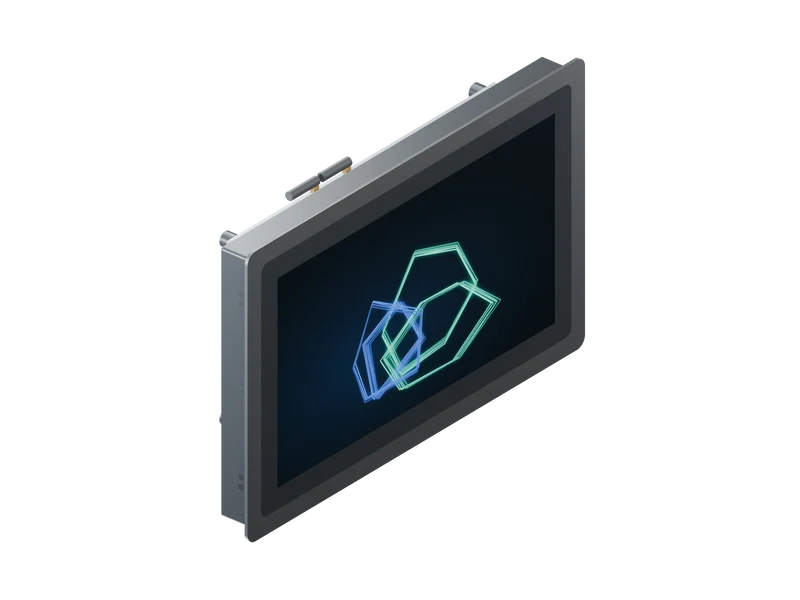

15.6-inch 2nd Gen i7-8565U Panel PC - 8GB RAM, 128GB SSD, Windows 10 Pro

15.6" 2nd Gen Panel PC - i7-8565U, 8GB / 128GB SSD / Windows 10 Pro

Intel Core i7-8565U, 8GB RAM and 128GB SSD define this 15.6-inch 2nd Gen build. 1920 x 1080 display; supplied with Windows 10 Pro.

Account for the complete 8GB workload

Budget the selected 8GB RAM across the operating system, interface application and peripheral services. Verify peak usage with the software image you intend to deploy.

Budget the 128GB system drive

Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.

Integrate the i7-8565U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 15.6-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

15.6-inch 2nd Gen panel PC with Windows 10 Pro

A 15.6-inch panel computer with a 15.6-inch 1920 x 1080 display for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 Pro is pre-installed and activated before dispatch; the exact build is confirmed with your quote.

Display 15.6-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i7-8565U Memory 8GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Windows 10 Pro; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 420 x 269 x 70 mm Datasheet opening 403 x 252 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, both on bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA (nominal center at enclosure center)
