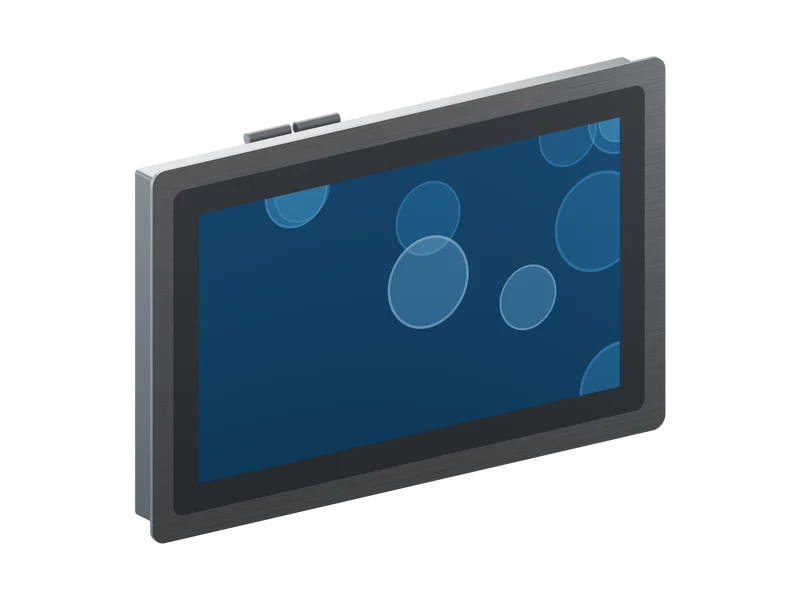

15.6-inch 2nd Gen i5-6200U Panel PC - 4GB RAM, 256GB SSD, Windows 10 LTSC

15.6" 2nd Gen Panel PC - i5-6200U, 4GB / 256GB SSD / Windows 10 LTSC

Intel Core i5-6200U, 4GB RAM and 256GB SSD define this 15.6-inch 2nd Gen build. 1920 x 1080 display; supplied with Windows 10 LTSC.

Plan a defined software image

With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.

Allocate the 256GB SSD

Divide the 256GB SSD between the software image, project files and local records. The required log or recipe history determines the storage budget; retention time depends on your data rate.

Integrate the i5-6200U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 15.6-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

15.6-inch 2nd Gen panel PC with Windows 10 LTSC

A 15.6-inch panel computer with a 15.6-inch 1920 x 1080 display for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 IoT Enterprise LTSC is pre-installed for long-servicing deployments; the release is confirmed with your quote.

Display 15.6-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i5-6200U Memory 4GB DDR4 Storage 256GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Windows 10 LTSC; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 420 x 269 x 70 mm Datasheet opening 403 x 252 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, both on bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA (nominal center at enclosure center)
