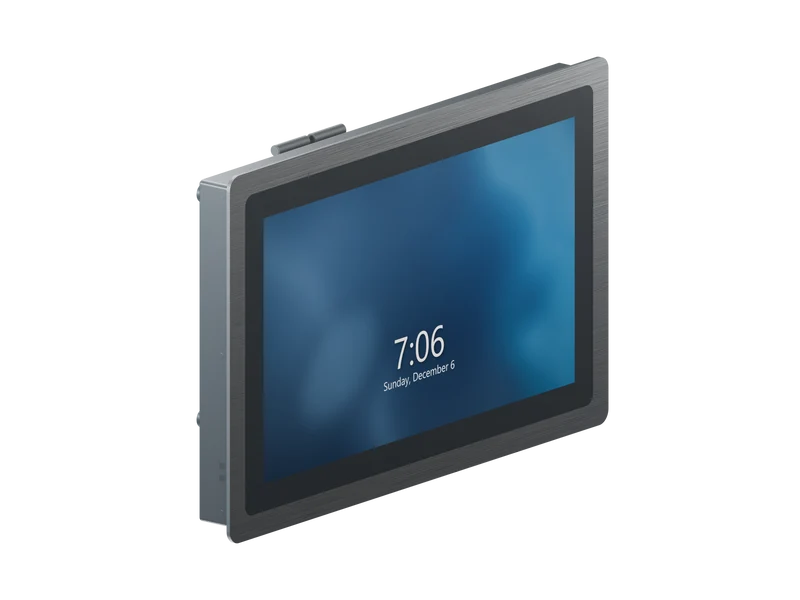

15.6-inch 2nd Gen i5-6200U Panel PC - 4GB RAM, 128GB SSD, Windows 10 LTSC

15.6" 2nd Gen Panel PC - i5-6200U, 4GB / 128GB SSD / Windows 10 LTSC

Intel Core i5-6200U, 4GB RAM and 128GB SSD define this 15.6-inch 2nd Gen build. 1920 x 1080 display; supplied with Windows 10 LTSC.

Plan a defined software image

With 4GB RAM, check the operating system and application memory requirements together. Include startup services and connected-device software in that budget.

Budget the 128GB system drive

Allow space for the operating system, application installation and updates within this 128GB SSD. Set a retention limit for local logs and confirm the usable capacity after deployment.

Integrate the i5-6200U platform

Documented interfaces: 2 x Gigabit LAN / 2 x USB 2.0 + 2 x USB 3.0 / 2 x RS232. Match the exact controller and peripheral connections, drivers and operating system to the project. The CPU model alone does not establish software compatibility.

This is a configuration of the 15.6-inch 2nd Gen family. RAM and SSD choices do not change its documented enclosure, connectors or environmental ratings.

15.6-inch 2nd Gen panel PC with Windows 10 LTSC

A 15.6-inch panel computer with a 15.6-inch 1920 x 1080 display for fixed machine and control-cabinet interfaces, with dual Gigabit Ethernet, four USB ports and two RS232 connections. Windows 10 IoT Enterprise LTSC is pre-installed for long-servicing deployments; the release is confirmed with your quote.

Display 15.6-inch TFT LCD Resolution 1920 x 1080 Processor Intel Core i5-6200U Memory 4GB DDR4 Storage 128GB SSD Touch 10-point capacitive Brightness 300 cd/m2 Operating system Windows 10 LTSC; release confirmed with quote Power input 12-36V DC Cooling Passive / fanless Front protection IP65 front when correctly installed Operating temperature -10 C to 60 C Enclosure 420 x 269 x 70 mm Datasheet opening 403 x 252 mm; confirm final revision before machining Ethernet 2 x Gigabit LAN USB 2 x USB 2.0 + 2 x USB 3.0 Serial 2 x RS232, both on bottom; RS485/RS422/GPIO require separate configuration review Video output HDMI + VGA Mounting Panel mount; 75/100 mm VESA (nominal center at enclosure center)
